Dental Autoclave Water Pump

The ULKA EP5 solenoid pump is an electrically operated pump intended to deliver water through a pressurized hydraulic circuit. For dental autoclaves, it may be considered as a water-feed component for the steam-generation system only when the pump’s pressure-flow curve, electrical rating, connectors, operating temperature and installation dimensions are compatible with the equipment design. The supplied technical sheet describes the CEME E5 series; it does not certify the EP5 as a universal replacement for all dental autoclaves or confirm suitability for a specific sterilizer model.

The technical specification lists production checks including a dielectric test at 2500 V for 1 second at 5 mA, diode check where applicable, self-priming, power absorption, flow rate at 0 bar and maximum pressure. The self-priming test draws water from a tank positioned 50 cm below the pump within 8 seconds. Hydraulic performance may vary with the actual circuit.

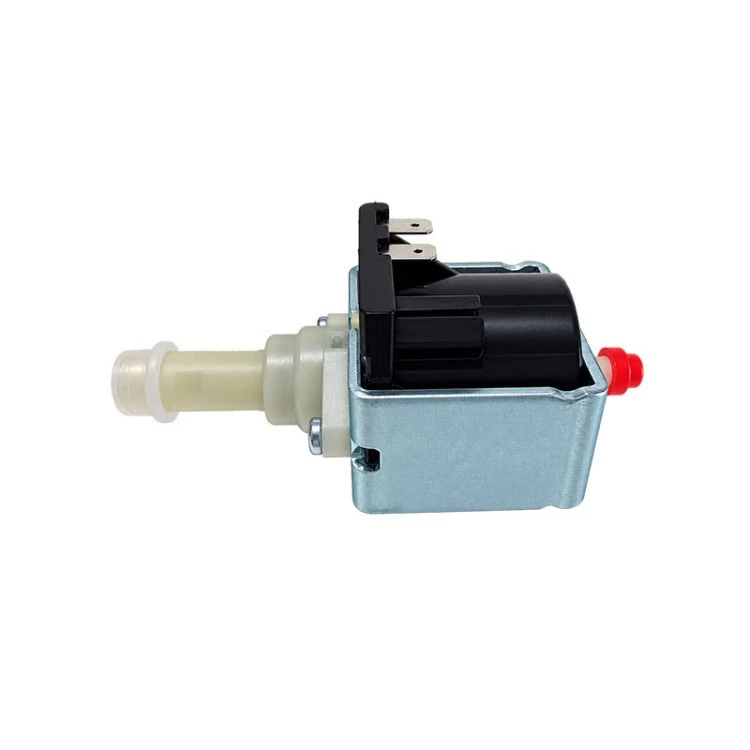

Product-series image supplied for reference

Product Specifications

Specification note: The supplied E5 technical sheet does not clearly support a universal 15 bar maximum working pressure, all-voltage availability for every EP5 model, exact pump dimensions, housing/seal/internal material composition, a 250-hour total ON-time life test, or UL approval for every EP5 configuration. These claims have not been presented as verified facts.

Application Areas

(1) Dental Autoclave Equipment

The EP5 may be evaluated as a water-feed pump for compatible Class B or Class N dental autoclaves. Before use in a sterilizer, confirm required pressure and flow, duty cycle, inlet-water conditions, electrical rating, mounting space, fittings and sealing method. A specific autoclave project reference should only be added when the actual pump installation has been verified.

(2) Small Steam-Generating Appliances

The E5-series pump may be considered for compatible steam-generating or water-delivery equipment where the pressure-flow curve and temperature limits meet the system requirements. The intended application must be checked for each device.

(3) Maintenance and Replacement

For replacement orders, compare the original pump model and part number, voltage/frequency, electrical terminals, inlet and outlet connections, mounting dimensions and operating pressure. Do not assume the EP5 is a direct replacement based on appearance alone.

Reasons for Choosing ULKA EP5

· Documented performance data: The supplied specification provides flow-rate values at multiple pressure points.

· Standardized connections: The listed Ø7.2 mm inlet, G 1/8 female outlet and 6.3 × 0.8 mm fast-on terminals support compatibility checks.

· Self-priming test information: The technical sheet records a test drawing water from a tank 50 cm below within 8 seconds.

· Production inspection: The specification lists 100% production checks, including dielectric test, self-priming, power absorption, flow at 0 bar and maximum pressure.

· Variant-specific approvals: IMQ and VDE approvals are listed for certain configurations; certificate scope should be checked against the exact model.

Supply and Technical Support

Bulk supply and sample availability, current lead time, pricing, original-brand status, and copies of certificates should be confirmed with the supplier for the exact requested configuration. The full technical specification can be provided for engineering review and compatibility assessment.

Product Appearance and Packaging Reference

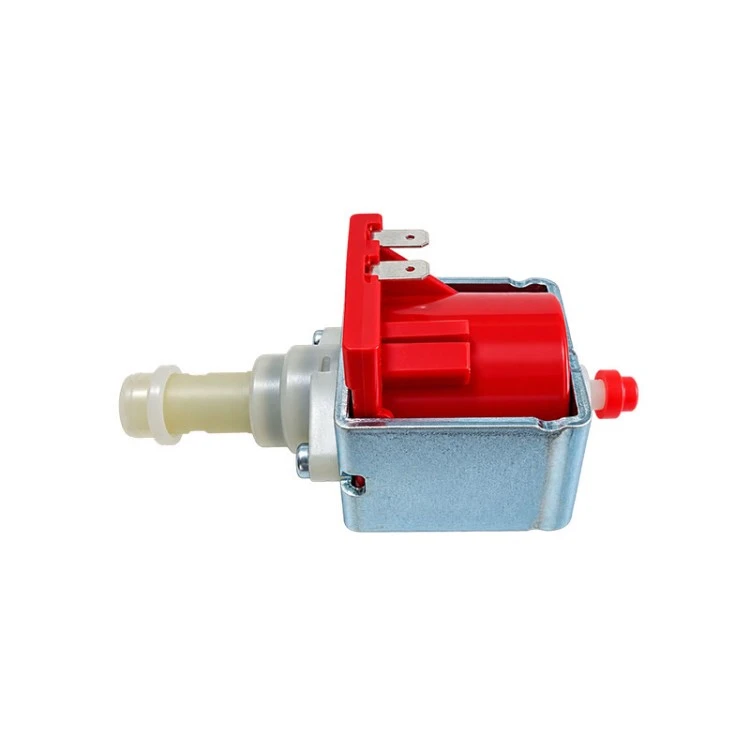

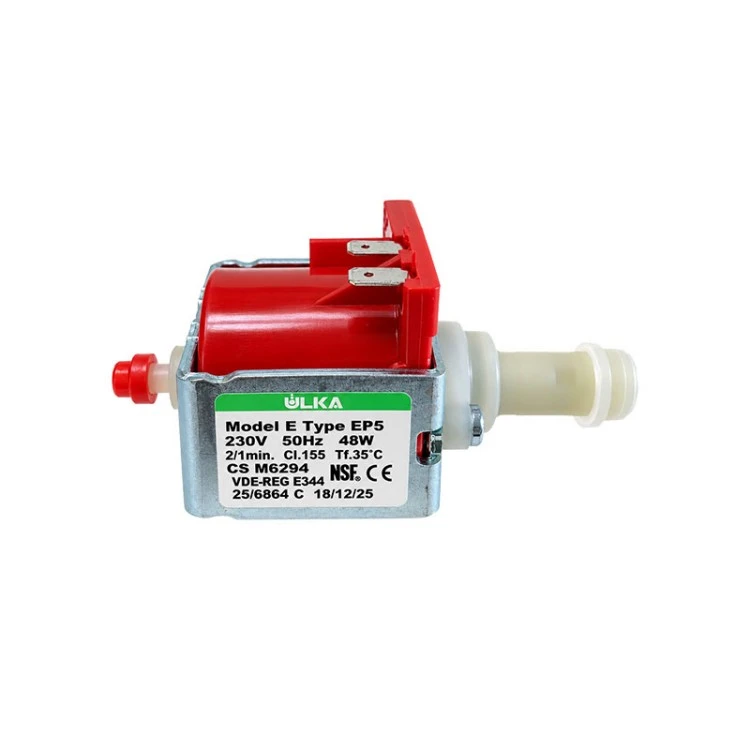

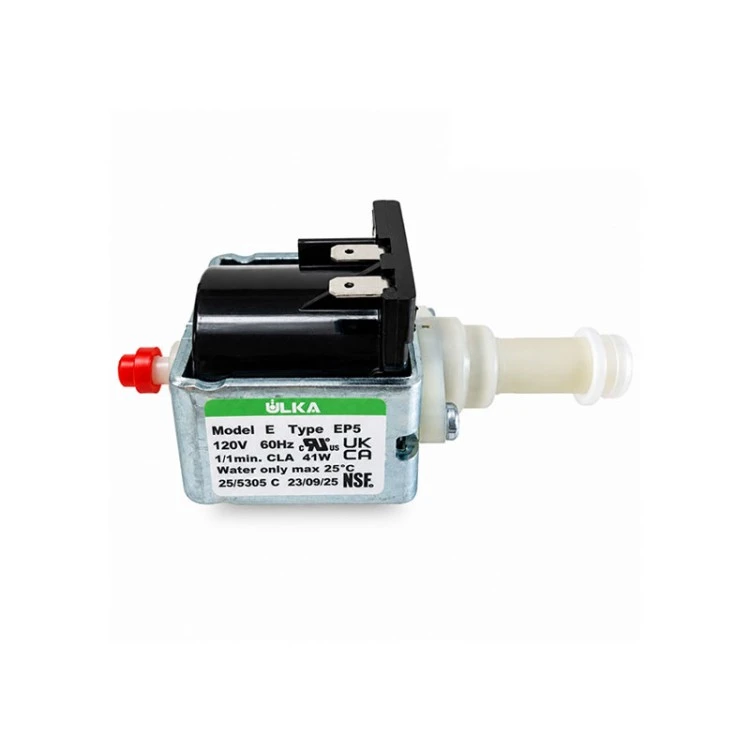

The images below show example pump appearances and packaging supplied for reference. Actual appearance, variant, quantity per carton and packaging should be confirmed for the specific order.

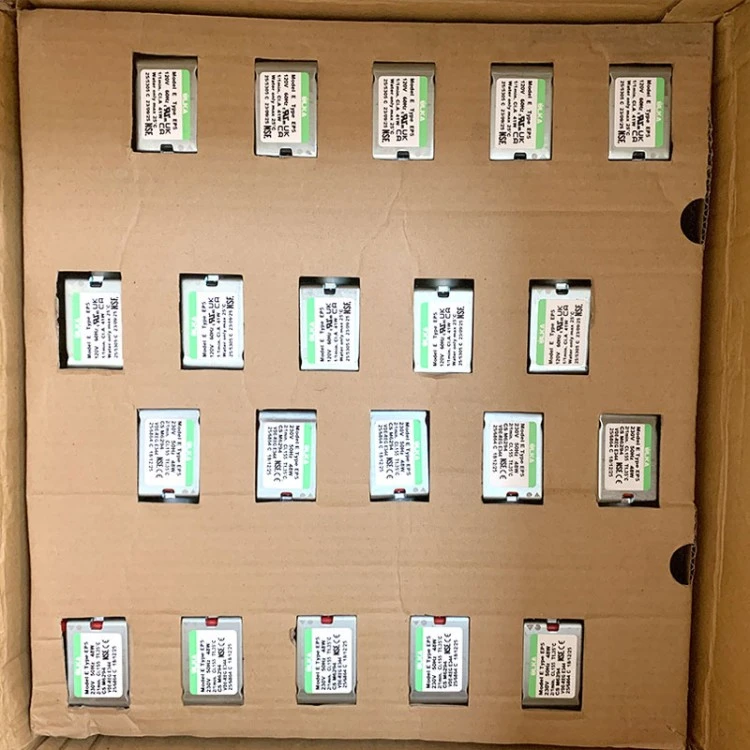

Carton arrangement shown for reference

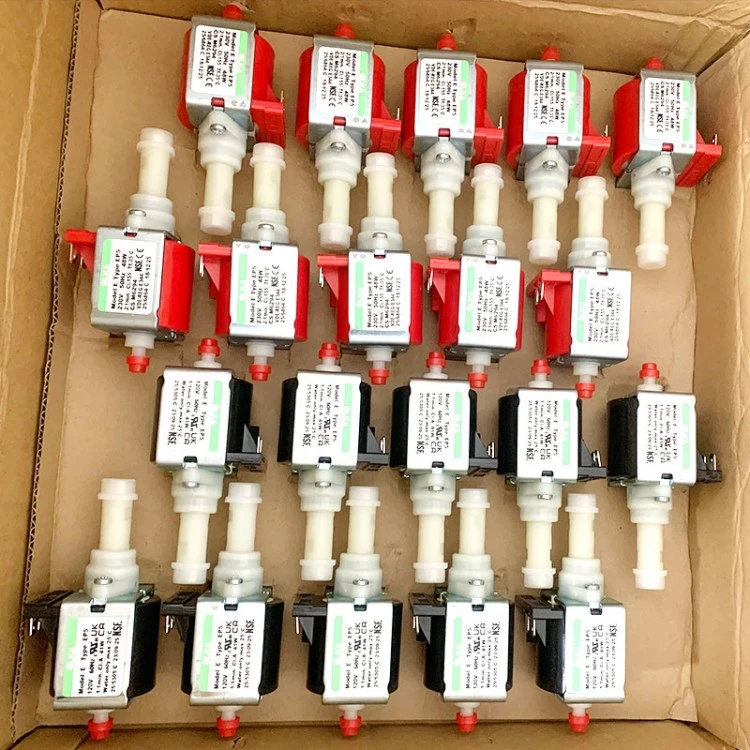

Bulk pump packing shown for reference
