Dental Autoclave Water Feed Svstems
- View as
Dental Autoclave Water Pump

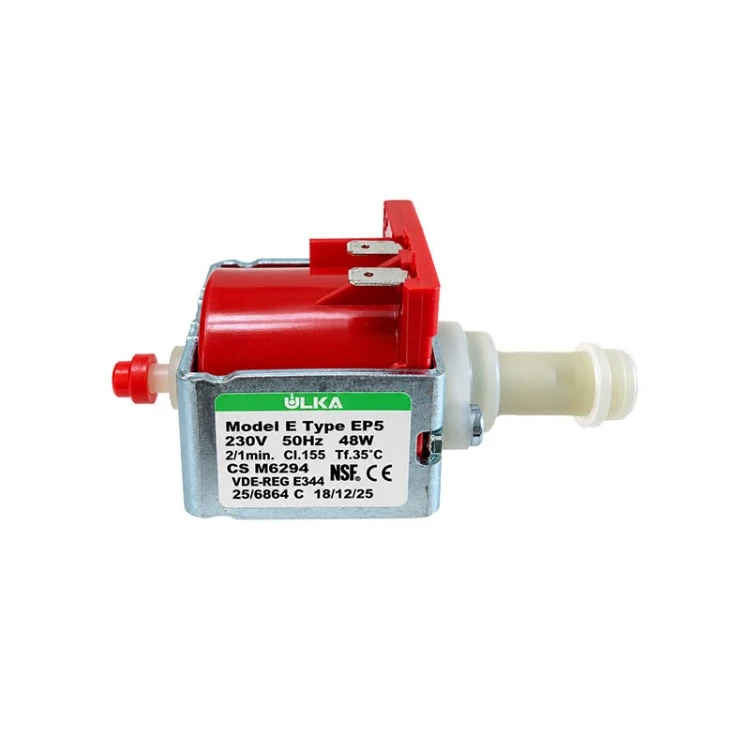

ULKA EP5 is an electromagnetic solenoid pump in the CEME E5 series that delivers water through a pressurized hydraulic circuit. It may be evaluated for compatible dental autoclave water-feed systems and other steam-generating equipment when the electrical, hydraulic, temperature and installation requirements match. For the specified 230 V AC, 50 Hz version, the supplied technical specification lists 48 W rated power, Class F insulation, a Ø7.2 mm barbed inlet and a G 1/8 female-thread outlet.
The supplied specification provides pressure-dependent flow data, including average flow rates of 650 cc/min at 0 bar, 520 cc/min at 2 bar and 210 cc/min at 10 bar. It also records a self-priming test in which the pump draws water from a tank positioned 50 cm below within 8 seconds. The listed maximum fluid temperature is 35°C and maximum ambient temperature is 25°C. Confirm the exact EP5 part number and voltage before ordering because E5-series variants have different electrical configurations and approvals.
The supplied specification provides pressure-dependent flow data, including average flow rates of 650 cc/min at 0 bar, 520 cc/min at 2 bar and 210 cc/min at 10 bar. It also records a self-priming test in which the pump draws water from a tank positioned 50 cm below within 8 seconds. The listed maximum fluid temperature is 35°C and maximum ambient temperature is 25°C. Confirm the exact EP5 part number and voltage before ordering because E5-series variants have different electrical configurations and approvals.
As a reliable Dental Autoclave Water Feed Svstems manufacturer and supplier in China, we have custom options and volume discount pricing. Please just send us a quotation!
